In the process of choosing a fresh air system, one major decision for consumers and professionals alike is whether to opt for a centralized return air ventilation system or an independent return air system. While we’ve discussed the differences between the two in previous articles, let’s dive into how to optimize a centralized return system for best results. For HVAC professionals and consumers, understanding these nuances ensures better air distribution, pressure balance, and overall indoor air quality.
1. Evaluate the Placement of Return Vents for Optimal Airflow

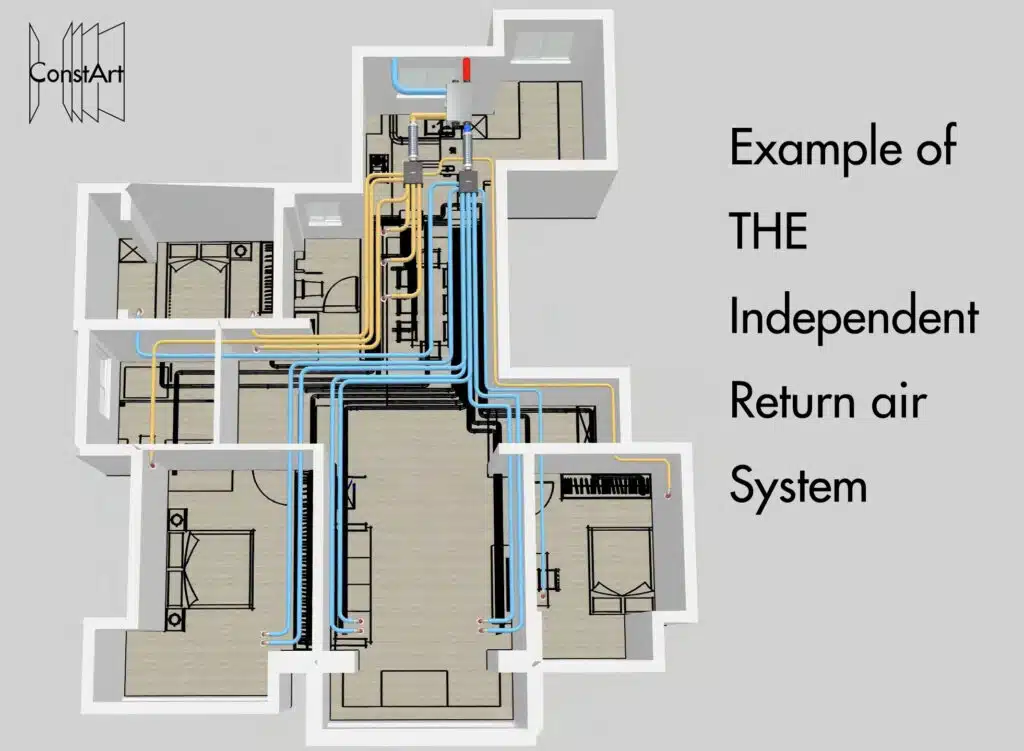

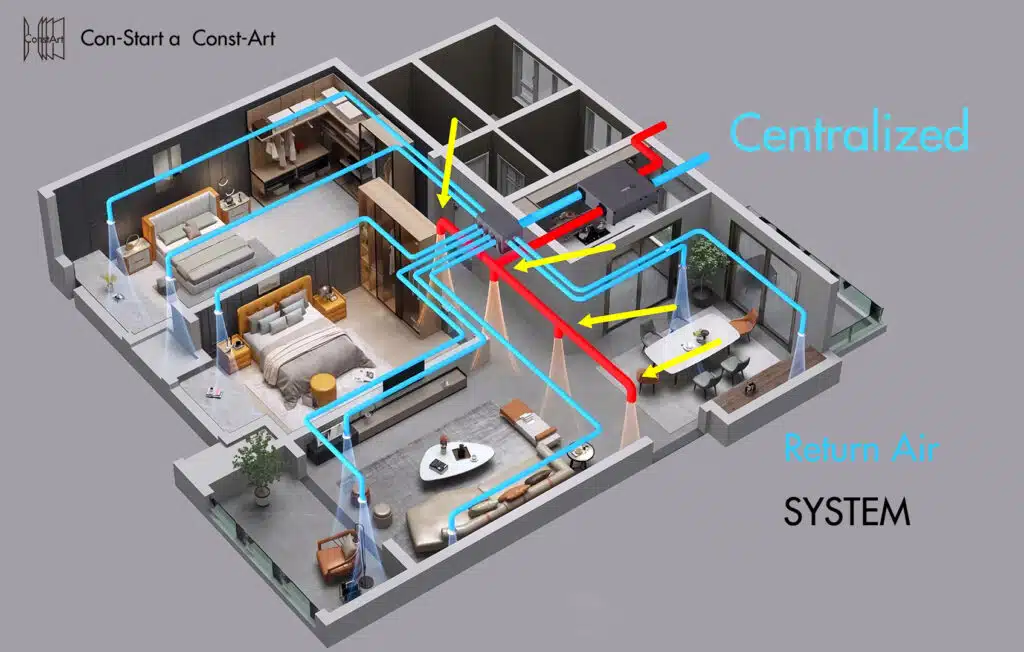

In an independent return air system, each room typically has its own dedicated supply and return vent, ensuring balanced airflow throughout the space. However, with centralized return systems, a single return vent is usually located in a common area, like a hallway or dining space, which creates a different airflow dynamic.
To prevent uneven air distribution, avoid placing additional return vents in individual bedrooms when using a centralized system. Additional returns disrupt the airflow balance, leading to uneven return air volume, which can significantly impact the overall air distribution and effectiveness of the system.
2. Understand Positive and Negative Pressure Dynamics
In HVAC systems, supply air generally creates positive pressure, while return air generates negative pressure. In an independent return setup, each room receives a slightly higher supply air volume than return air, creating a gentle positive pressure, or “micro-positive pressure.” Most HVAC equipment is designed with a supply-to-return ratio that inherently creates this positive pressure, typically with a 10-20% higher supply volume than return volume. This subtle pressure balance helps maintain indoor air quality by preventing outdoor contaminants from entering.
Comparison chart of indoor positive and negative pressure differences
In a centralized system, ensure the supply-to-return volume ratio remains effective to sustain a micro-positive environment, which can significantly improve air quality and comfort.
3. Recognize the Impact of Increased Pressure on Supply Air Volume
A key challenge in centralized return systems is that continuous supply air can increase room pressure, especially in well-sealed spaces like bedrooms with closed doors and windows. As the room’s positive pressure increases, the effectiveness of air supply decreases – similar to inflating a balloon; as pressure builds, it becomes harder to add air.
To counter this, check that doors and windows are not overly sealed, and consider additional ways to regulate the pressure within each room, especially in well-insulated environments.
4. Adhere to Standards for Transfer Grille Installation
According to Chinese National Standard JGJT 440-2018, rooms with separate supply vents and a centralized return should have transfer grilles to allow airflow from individual rooms to the centralized return area. For rooms where a transfer grille cannot be installed, maintaining a gap of 20-25mm under the door is essential for enabling unobstructed airflow from the supply to the return vent, ensuring effective air circulation throughout the space.
Following these standards enables smooth airflow out of rooms and towards the central return, thus achieving balanced pressure and efficient ventilation.
Conclusion
A centralized return system, when installed with attention to airflow dynamics, pressure balance, and adherence to industry standards, can provide exceptional ventilation and indoor air quality. By ensuring correct vent placement, managing pressure relationships, and following building standards, professionals can deliver optimized air distribution and comfort. HVAC experts and installers should keep these essential tips in mind for maximizing the efficiency and longevity of centralized return air ventilation systems.
